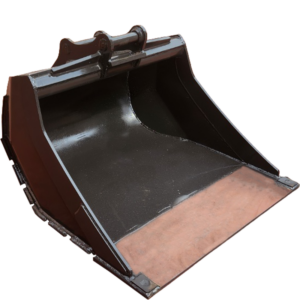

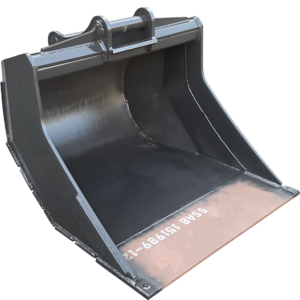

Grading Bucket
A smooth-edge bucket for leveling, finishing and shaping ground. A great choice for use with tiltrotators.
- Made to order for 3 to 50 ton excavators
- Well suited to use with tiltrotators
- Hardox® In My Body certified
- Cut, machined, welded and assembled in-house in Gunsan, Korea
Excavator size
3 – 50 ton
Available variations
Hardox-reinforced typeFull-reinforced type (option)European-style pin type
Overview
The grading bucket is a wide, shallow bucket with a straight cutting edge, designed for finishing work. It produces clean, even surfaces on road bases, slopes and drainage ditches, and it works especially well on a tiltrotator.
Choose a Hardox®-reinforced type, or the full-reinforced option, so the edge and floor stay flat and effective even after long hours of scraping and dragging.
Quick Specs
- Excavator size: 3 – 50 ton (made to order)
- Material: wear-resistant steel, Hardox® options
- Mounting: Hardox-reinforced type / Full-reinforced type (option) / European-style pin type
- Origin: made in Gunsan, Korea
- Customization: made to order
Key Features
Tiltrotator friendly
A good bucket to use on a tiltrotator for precise finishing.
Straight cutting edge
Gives a flat, accurate finish when leveling and trimming.
Wide, shallow profile
Covers large areas while keeping the load low and stable.
Hardox® reinforcement
Hardox®-reinforced type or full-reinforced option.
Strong reinforcement
Ribbed construction prevents the wide body from flexing.
Made to order
Sized for your excavator class.
Typical Applications
Road base preparation
Leveling aggregate and sub-base.
Slope and embankment finishing
Trimming slopes to a smooth line.
Ditch shaping
Forming and finishing drainage ditches.
Landscaping
Final grading before paving or planting.
Watch It Work
Materials & Construction
Every Changwoon Industry attachment is cut, machined, welded and assembled in-house at our workshop in Gunsan, Korea. We are Hardox® In My Body certified and work with high-strength, wear-resistant steel, with Hardox® wear plate options (such as Hardox 500) in high-wear areas, so your attachment keeps its shape and performance under heavy, abrasive work.
Hardox® and Hardox In My Body are trademarks of SSAB.
Variations
The Grading Bucket is available in the following variations:

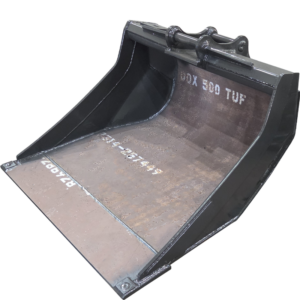

- Hardox-reinforced type – Hardox® wear plate reinforcing the areas that wear fastest.
- Full-reinforced type (option) – Full reinforcement option for the most abrasive work.

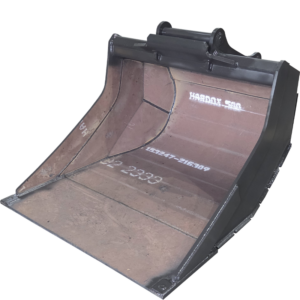

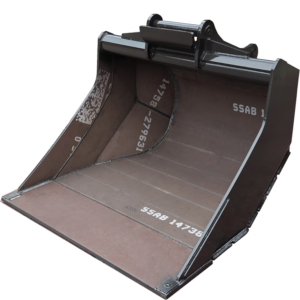

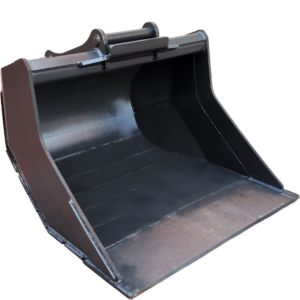

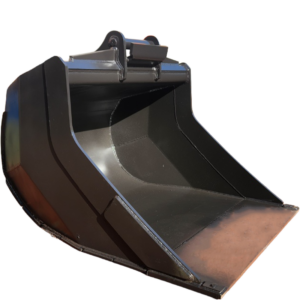

- European-style pin type – Built for European-style pin-type mounting.
Not sure which variation suits your machine? Send us your excavator model and coupler details and we will recommend one.
In Use on Site
Frequently Asked Questions
Both are wide, smooth-edge buckets. Grading buckets focus on precise finishing, while mud buckets favor capacity for cleaning and loading.
Yes. It is a good bucket to use with a tiltrotator. Tell us your tiltrotator model so we can match the coupler.
Made to order for 3 to 50 ton excavators.
How to Order
1. Send your details
Tell us your excavator make, model and weight, plus the coupler or pin dimensions.
2. We confirm the spec
We confirm the size, capacity and options that suit your machine and work.
3. We build it
Your attachment is made in-house and inspected before shipping.
4. Delivery
We ship to customers worldwide. Contact us for quotation and delivery terms.
Need a custom Grading Bucket?
Tell us your excavator and your application. We will recommend the right specification and send you a quotation.
